Specification

FKN12A-12D Series air-blast load break switch and FKRN12A-12D series air-blast load break switch-fuse combination apparatus are new seriesswitchgear applies to three-phase electric distribution system of rated 12KV,acting as protecting and control apparatus for transformers,cable and overheadwiring.These series are especially applicable in rural,urban terminal substation and prefabricated substations,as well as ring network power supply.FKN12A-12D Series air-blast load break switch can break and make load current and over-current.

FKRN12A-12D Series air-blast load break switch can break and make over-current,load current and short-circuit current(limited current fuse).This product is featured with impact structure,aesthetic appearance reliable interlock and high insulating level.In the spring storage operatingmechanism.ON/OFF speed is free from the influence of the manpower.For the arc-extinguish electric arc-extinguish inside the insulating cover.the free gasoccurs at sparking do not cause descend of insulating level between phases and phase to earth.The insulating cover clapboard separates electrified part thusboost protection grade of ring main unit.The copper-tungsten contact and main contact brings along reliable conductivity and long life.This product achievessound fame due to easy maintenance and operations as well as reliable performance.It is in compliance with per IEC62271-105.

Ambient condition

1.Ambient temperature -25℃-+40℃。

2.Elevation≤1000m。

3.Humidity:daily average humidity≤95%,monthly≤90%。

4.The earthquake does not exceed degree 8。

5.No fire,explosion,chemical errosion。

6.Pollution:level 2。

Structural features

1.load switch,grounding switch,fuse and institutions in a framework that can be flexibly combined,compact,convenient and easy to install a smallvolume.

2.the fracture is direct acting arrangement,dynamic and thermal stablity current parameters is high.time to complete the operation.

3.with static contact insulation cover,so RMU in the structure to achieve the isolation,eliminating the phase insulating spacer,fracture insulation boardsthat can prevent internal arc short circuit accident.

4.has a unique valve structure,load switch after opening the shutter automatically fracture isolation,good protective properties.

5.load switch and grounding switch.a reliable mechanical locking device between the fuse,to meet the Five Ant'requirements.

6.Two forms of electric operations 6,with manual operation and AC and DC operating power supply,easy to implement power system."three remote'requirements.

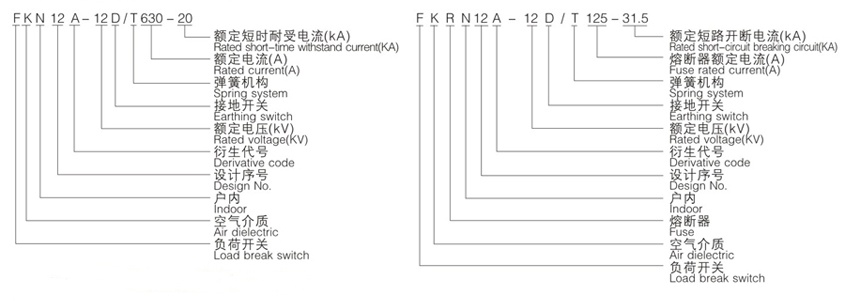

Model implication

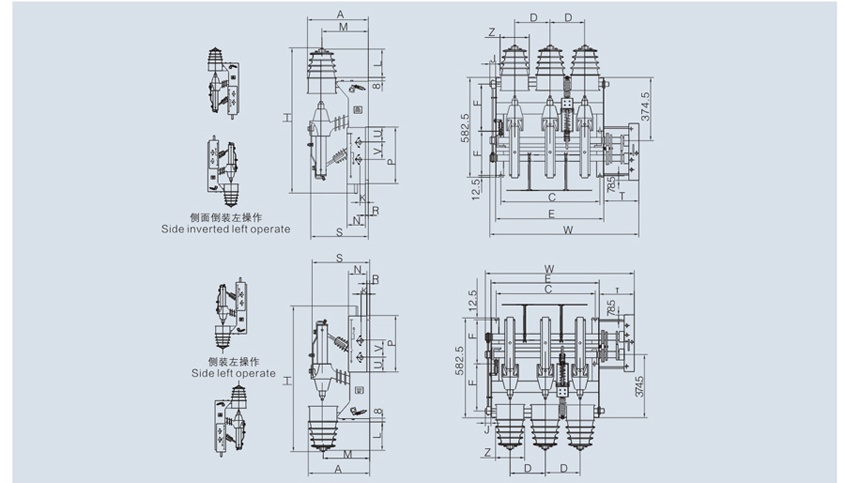

Overall dimension

Technical parameters:
