Product category
Miniature Circuit Breaker; Design code: 1; Function code: Electronic type residual current protection function; Current rank: 63; Pole: 1P; Neutral pole: +N; Using code: C=Light distribution，D=Motor orotection; Rated current: 3A~63A; Residual initiating current: 30,50,100,300
Product Details
Rated current: 3A-63A
Pole: 1P,1p+N,2P,3P,3P+N,4P
Technical Paramete
Rated voltage(V) | Rated frame graded current Inm (A) | Pole | Neutral | Rated current(A) | Rated leakage operate current I△n(mA) | Rated no leakage operate current I△no(mA) | Rated leakage operate time(s) |
230 | 63 | 1 | +N | 3,6,10,16,20 32,35,40,50, 63 | 30,(50), (100), (300) | 15,(25),(50), (150) | ≤0.1 |
230/400 | 2 | ||||||
230/400 | 3 | +N | |||||
230/400 | 3 | ||||||
230/400 |
Product Choice
Name | Details |
Product category | Miniature Circuit Breaker |
Design code | 1 |
Function code | Electronic type residual current protection function |
Current rank (Amp) | 63A |
Pole | 1P,1p+N,2P,3P,3P+N,4P |
Neutral pole | +N |
Using code | C=Light distribution,D=Motor protection |
Rated current (Amp) | 3A~63A |
Residual initiating current | 30,50,100,300 |
Remark
1.Wiring with clamp terminal,hardwire can be connect to 25 mm2 and below.
2.Notice:Rated residual current of 30mA or less indirect protection or personal saretyfeatures, but not simultaneously contact the two wires leakage protection at the same time.

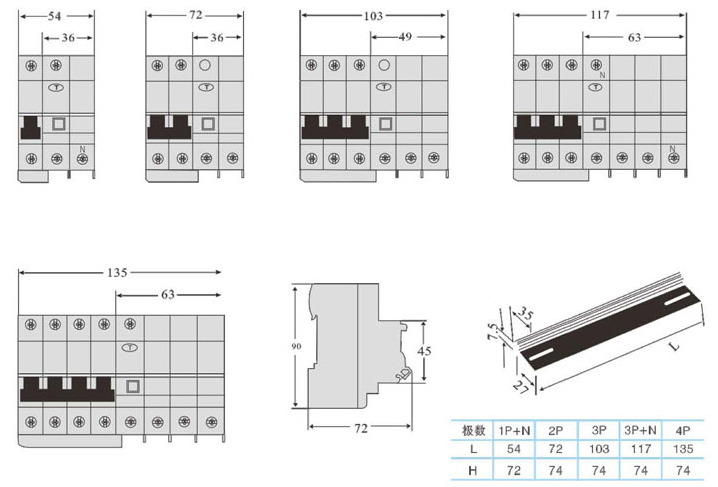

Outline dimension
