Product category
Miniature Circuit Breaker; Design code: 1; Current rank: 63; Pole: 1P; Using code: C=Light distribution, D=Motor protection; Rated current: 3A-63A.
Product Details
Rated current: 3A-63A
Pole: 1P,2P,3P,4P
Product Parameters
Technical Parameter
Rated current(A) | Pole | Rated voltage(V) | Rated short circuit breaking capacity (A) | Power factor | Mechanical life(times) | |
3,6,10,16,20,25,32，40，50，63 | 1P+N | 230/400 | 6000 A | 0.65~0.70 | 20000 | |
Product Choice
| Name | Details |
| Product category | Miniature Circuit Breaker |
| Current rank (Amp) | 63A |
| Pole | 1P |
| Using code | C=Light distribution,D=Motor protection |
| Rated current | 3~63A |
Remark
1.Electrical life: 4000 cycles.
2.Antihumid head type: II (The temperature is 55 degrees,the ralative humidity is 95%).
3.Wiring with clamp terminal.cross-section of cable can be up to 25 mm2

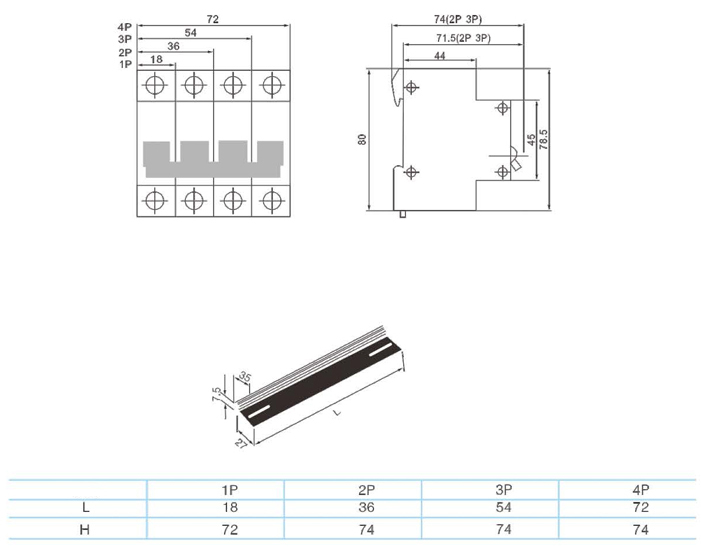

Outline dimension
