Product Details
It is used to distribute electric energy, protect circuit and power supply from damage of defaults,such as overload,under voltage,short circuit,single-phase grounding.Circuit breaker has intelligent protection function,and its selective protection is accurate.
Pole: 3P,4P
Rated current: 1000A, 2000A, 3200A, 4000A, 6300A
Ue: AC 380V/400V/600V/690V; Ui: 1000V; Uimp: 12kV;
In: 200A, 400A, 630A, 800A, 1000A, 1250A, 1600A;
Type of overcurrent trip: Electronic;
AC 400V: Ics=55kA; Icu=50kA/1s;
AC 480V: Ics=65kA; Icu=85kA/1s;
AC 690V: Ics=42kA; Icu=50kA; Icw=42kA/is;
Selective category: Category B; intended for isolation.
Product standards and technical requirements : GB/T 14048.2-2020.
Product Summary
BW1 series Air Circuit Breaker(hereinafter referred to as circuit breaker) is applied in distribution network with AC 50HZ ,rated voltage 690V(or below),and rated current 200A-6300A. It is used to distribute electric energy, protect circuit and power supply from damage of defaults,such as overload,under voltage,short circuit,single-phase grounding.Circuit breaker has intelligent protection function,and its selective protection is accurate.Besides,it can improve the reliability of power supply and avoid unnecessary blackout.At the same time ,it possesses open-type communication interface to realize four-remote function,namely remote control,remote regulating,remote measurement and remote communication,in order to meet the requirement of control center and automatic system.This circuit breaker has isolation function.
Classify
1.Accord to install:Fix type,Drawer type.
2.Accord to pole:3P、4P
3.Accord to operation:Electric operation,Manual operation(Repair,maintenance)
Release
Intelligence controller,under-voltage instant(or delayed)release,shunt release.
Product Parameters
Intelligence Controller Function
1.intelligence controller:H(intelligence type),M(Standard type)、L(Economy type)
2.Have overload long delayed inverse time limit,short delayed inverse time limit,constant time-lag and instant function,it can according to user require to set protect.
3.Single ground protect function.
4.Display function:setting current display,action current display and each line voltage main display(voltage display need ask us when give me the order)
5.Alarm function:overload alarm.
6.Self test function:overheating self test,microcomputer self diagnosis.
7.Test function:intelligent controller of operating characteristic.
Product Choice
| Name | Details |
| Product category | Universal Type Circuit Breaker |
| Design code | 1 |
| Current rank (Amp) | 1000A,2000A,3200A,4000A,6300A |
| Breaking capacity | M=Standard,H=High breaking |
| Pole | 3P,4P |
| Product structure | C=Drawer type,G=Fix type |
| Controller | L=Economy type,M=Intelligent,H=Communication type |
Precautions
Normal Use And Installation Condition
1.Ambient air temperature:upper limit value not exceeding+40℃,lower limiting value not exceeding -5℃,average value not exceeding +35℃.Special orders expected.
2.Install address of altitude not exceeding 2000m.
3.Atmospheric conditions:Atmosphere relative humidity not exceeding 50% when ambient air is +40℃,it can have higher of relative humidity in the lower temperature ,the average max relative humidity is 90% in the max wet month,this month average max temperature is +25℃ at the same time ,it need to think about condensation of product’s surface which will a[[ear with the change of temperature.It need consult with my company when it exceed regulated requirements.
4.Level of protection:IP30.
5.Class of pollution:3 class.
6.Use classes:B classes or A classes.
7.Installation category:Rated operating voltage 660V(690V) and below circuit breakers and undervoltage demerters,power transformer primary coil of installation category isⅣ,other assist circuit,controller installation category is Ⅲ.
8.Installation condition:Breaker need according to this instruction require to install,breaker of vertical gradient not exceeding 5°(mine breaker of vertical gradient not exceeding 15°）

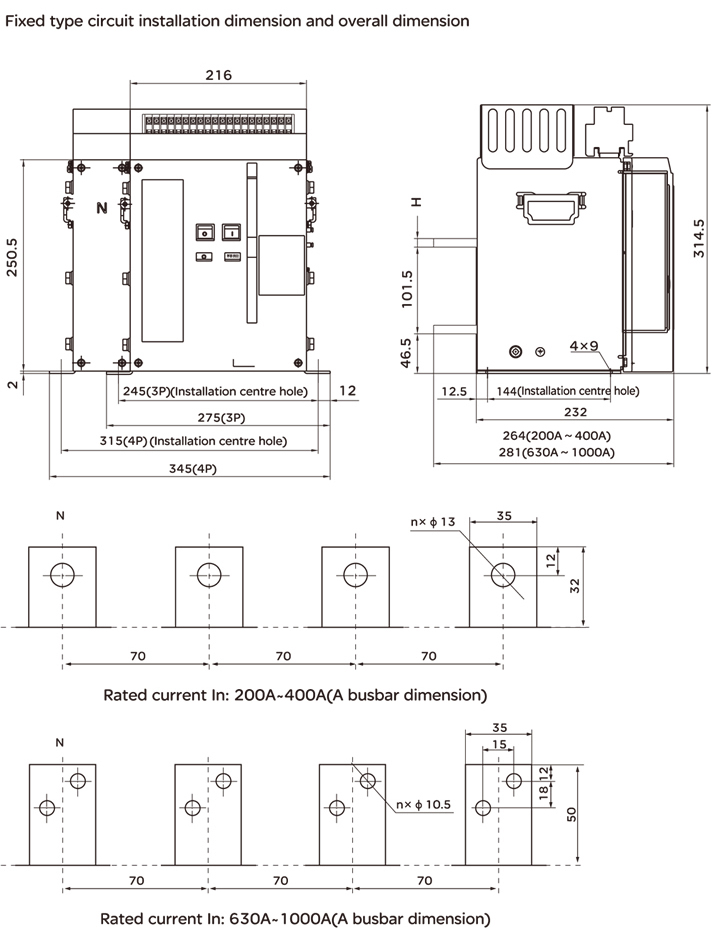

External and installation dimension
