General
BQ is one controller with YCQ4 ATS system of Mains and genset power,which can control the YCQ4 ATS switch by auto or manual mode to apply for mains and gens power.It is with 4 digits LED tube which can display the single-phase gens voltage, gens frequency, mains voltage, mains frequency. YCQ4 ATS switch working status can be also shown by LED.All the parameters can be set through the front face buttons or PC port.
Features
1.32 units Micro-procession technology is used;
2.Wide voltage range: 8-36V;
3.4 digits LED tube which can display mains, voltage, frequency;
4.Totally 7 relay’s output, max current is 5A(250VAC);
5.1 group programmable switch input;
6.Parameters can be set by front face buttons;
7.Standard water-proof rubber, the protection level can reach at IP54;
8.All the connection are installed by European style terminals;
9.Simulated mains function, crank conditions can be chosen.
Techniacal data
Options | Parameters |
Operation Voltage | DC8-36V Continuous |
Power Consumption | Standby:24V:MAX 1W |
Working:24V:MAX 3W | |
MainsAC Voltage Input | 30VAC-300VAC(ph-N) |
GensAC Voltage Input | 30VAC-300VAC(ph-N) |
Gens Close Output | 5Amp(AC250V) free output |
Mains Close Output | 5Amp(AC250V) free output |
Gen Start Relay | 5Amp(AC250V) free output |
Switch Value Input | Available if connecting with Battery - |
Working Condition | -30-70°C |
Storage Condition | -40-85°C |
Protection Level | IP54:when waterproof rubber gasket is added between controller and its panel |
Overall Dimension | 78mm*78mm*55mm |
Panel Cutout | 67mm*67mm |
Weight | 0.3Kg |

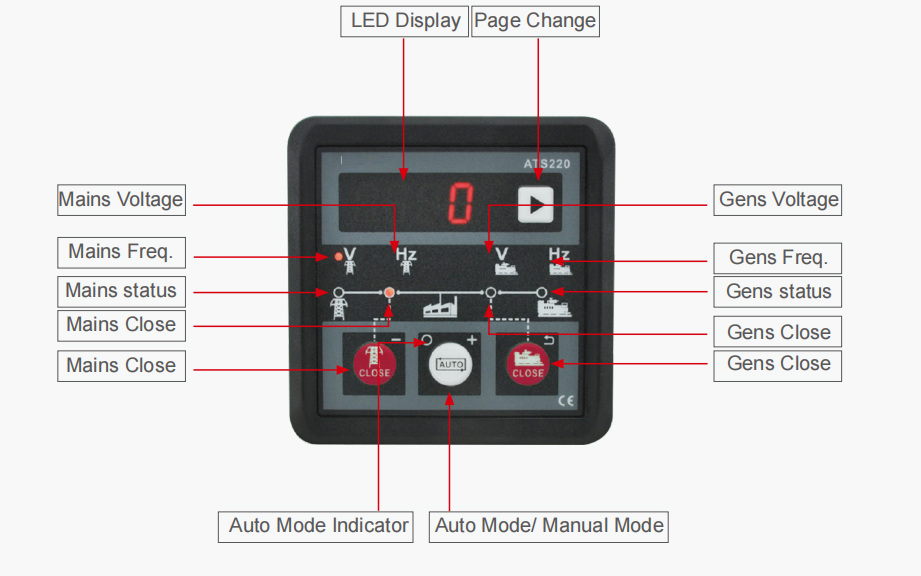

Product Overview
