Product Information
CJX2 series AC Contactors have small size and very attractive appearance. They are mainly applied in alternating circuit( 50/60Hz frequency, maximum current is 95A when the voltage is 380V under AC-3 type), to close or break the circuit. It turns into an electromagnetic starter when it works together with a matching Thermal Relay, which can protect the overload circuit. Meanwhile, this device is very skilled at frequently starting and controling the AC generator
Technical Data
| Product Name | AC Contactors | Ith | 20A-800A |
| Model No. | CJX2 Series | Electrical Life | 200000times-1million |
| Standards | IEC 60947-1-1,GB 14048-2 | Mechanical Lief | 1million-10million |
| Certifications | CE,CB, | Ambient Temperature | -5℃ ▬40℃ |
| Number of Poles | 3P | Maximum Humidity | 95% |
| Functions | start or control the motors | Altitude | 2000meters |
| Rated Currents | 9A-620A | Pollution Class | III Class |
| Rated Voltate | 380/660V | Installation Conditions | slope should below ±5° |
| Rated Insulation Voltage | 690V | Shock And Vibration | Installation site must be without shock and vibration |
| Breaking Capacity | 8x Ie(AC-3) | Installation Type | III class |
| Application Type | AC-3,AC-4 | Mounting Type | 35mm DIN-Rail |

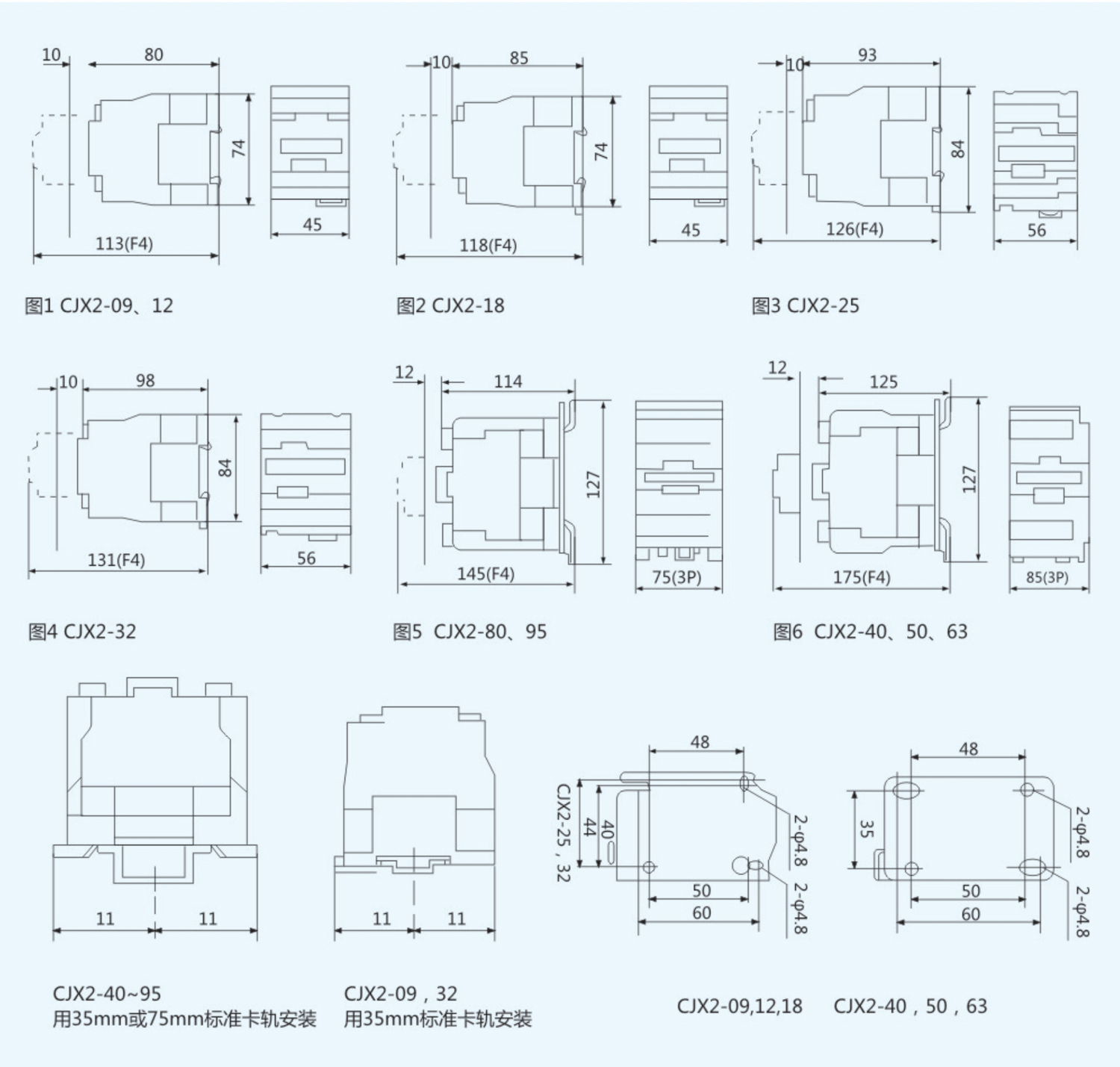

Outline dimension
