Product Overview

The wind (photovoltaic) power generation combined box type substation monitoring system has complete protection, measurement, control, and signal circuits. The low-voltage switchgear assembly is reliable, suitable for low temperature and condensation environments, and includes a box transformer measurement and control unit and corresponding fiber optic connection equipment to collect various electrical and non electrical parameters inside the box transformer, meeting the measurement and control requirements of the comprehensive automation system of photovoltaic power plants.

Applicable environment

Environmental temperature range: -45 ℃ to+45 ℃

Outdoor wind speed: ≤ 35m/s

Seismic resistance: horizontal acceleration not exceeding 0.3g, vertical acceleration not exceeding 0.15g

Pollution level: Level III

Shell protection level: IP54

Installation location: Outdoor

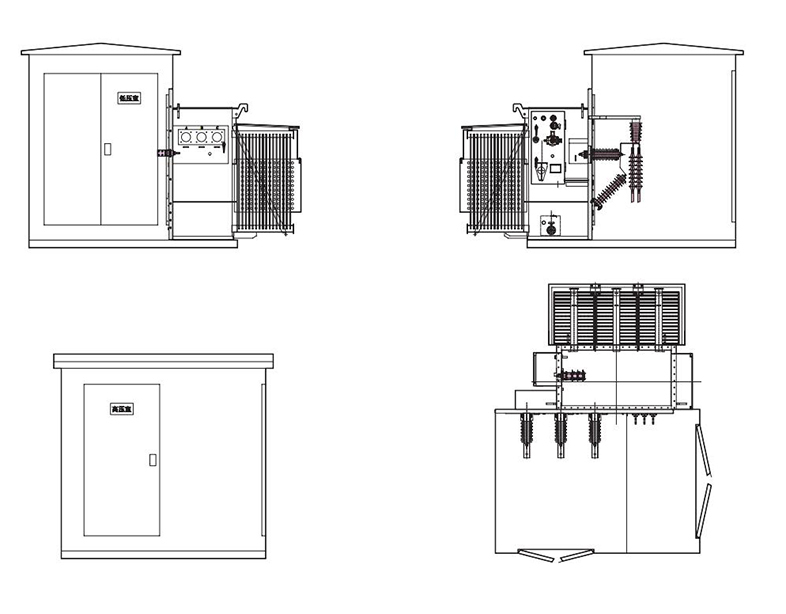

Structural dimensions
