Product overview

HBXGN-12/630-25 series environmental protection gas-insulated metal enclosed switchgear is a distribution switchgear which uses vacuum interrupter for arc extinguishing, environmental protection gas as the main insulation medium, a small number of solid insulation supports, and the main circuit is not encapsulated. During normal operation, it has zero gauge pressure or slight positive pressure (the air pressure in the air box is ≦0.02MPa), and the relative and interphase insulation capacity meets the air insulation requirements under zero gauge pressure.

Environmental protection gas insulated switchgear is a commonly used three-phase AC intelligent environmental protection gas insulated cabinet, and it is widely used in various complete sets of switchgear. With the concentration of domestic population, the power market must be matched, and the demand for environmental protection gas insulated switchgear will also increase with the development of the market. The market potential has yet to be developed. At the same time, the product integrates data acquisition and control, data processing and storage, on-line monitoring and advanced analysis of switchgear, etc., and carries out on-line intelligent monitoring and management of the distribution network, so that the distribution network runs in a safe, reliable, high-quality and efficient state, realizing remote monitoring, control and management of the power system distribution network, and realizing the requirements of power grid optimization, electricity safety, electric energy management, energy saving and consumption reduction; At the same time, the system can be widely used in intelligent power distribution fields such as transportation, factories, hospitals, schools, buildings, residential quarters and commercial office buildings.

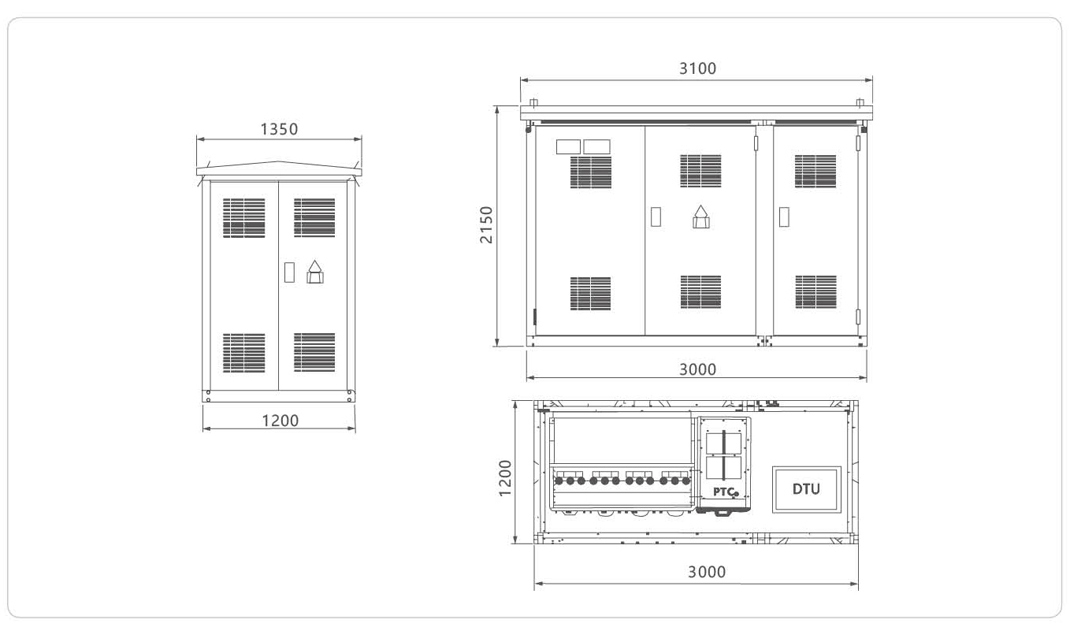

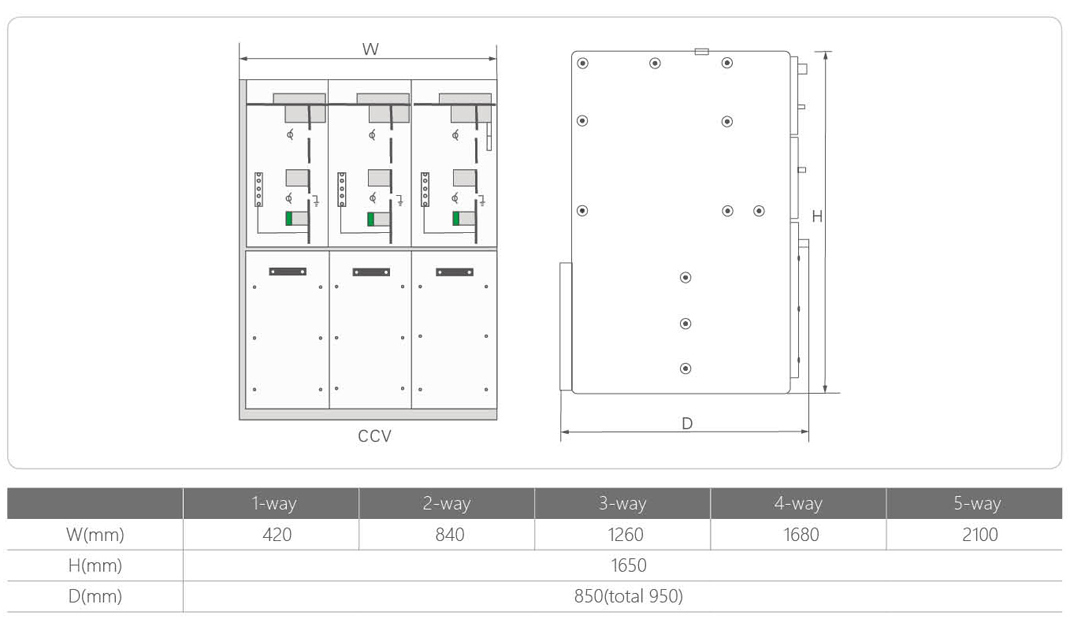

Outline dimension

Scheme diagram
