Description

GW5 series Outdoor High Voltage Disconnectors consists of three single phase, V type for each phase, symmetrical angle  is 50°, disconnect switch is made  of pedestal, post insulator and electric part. They  are used in no-load condition to switch off the electric circuit and isolate  electrical equipment, such as high voltage bus, circuit breaker etc, and high  voltage line up to 252kV power system.

GW5-40.5/72.5/126/252 outdoor high voltage disconnecting switch is used to make or break high voltage circuit in rated voltage 40.5kV, 72.5kV, 126, 252kV, AC 50/60Hz electric system. It can open and close small capacitance and inductive current. This disconnecting switch accords with standards: IEC62271-103 High voltage switches. GB1985: AC High voltage disconnect switch and earthing switch and IEC 60694 & GB/T11022: Common technical requirements of HV switchgear and control equipment.

Environment condition

Ambient temperature: max +40°C min -25°C

Altitude: ≤1000m

Wind pressure: ≤700Pa (equals to wind speed 34m/s)

Air contamination degree: IV degree

Earthquake intensity: ≤8 degree

No corrosive or flammable gas, no frequent violent vibration

Technical Data

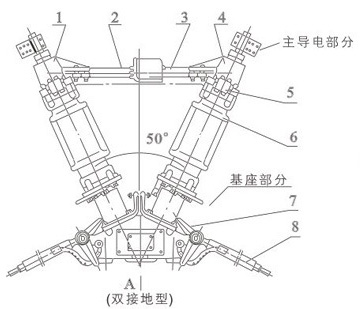

Outline & Mounting Dimensions
