Description
GW口-15D series outdoor high-voltage isolating switch, which is a high-voltage switchgear with single-pole structure. It can be used for circuit and circuit in the outdoor 12KV line network with voltage and no load.
Switch with grounding knife, with CS port type manual mechanism, can prevent the grounding wire and the grounding wire from being "closed" Waiting for the wrong operation, the operator does not have to hang the ground wire.
The anti-fouling outdoor high-voltage isolating switch can meet the requirements of users in severely polluted areas, and can effectively solve the problem of pollution flashing that occurs in the operation of the isolating switch.
Environment condition
Ambient temperature: max +40°C min -30°C
Altitude: ≤1000m
Air contamination degree: IV degree
Earthquake intensity: ≤8 degree
No corrosive or flammable gas
Technical Data
| 1 | Rated voltage | kV | 10/15 |
| 2 | Maximum work voltage | kV | 12/20 |
| 3 | Rated frequency | HZ | 50 |
| 5 | Rated current | A | 200/400/630/1250 |
| 6 | 4s short time withstand current | kA | 6.3/12.5/20/31.5 |
| 7 | Rated peak withstand current | kA | 16/31.5/50/80 |
| 8 | accessories frame | CS8-1,CS8-D,CS8-5 manual actuator form, CJ61 motor actuator form | |
| 4 | mechanical endurance | Times | 10000 |

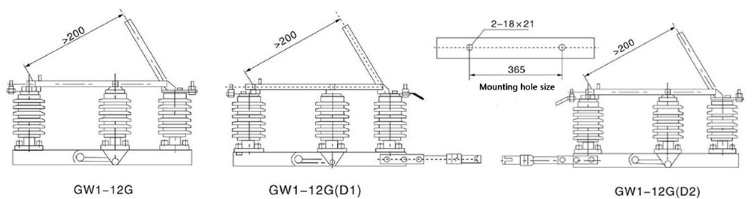

Outline & Mounting Dimensions
