Product overview
Three-Phase Disconnect Switch RVZ-10/630 II UHL2 Internal Mounting with One Grounding Blade for Use in AC Power Networks with 50-60 Hz Frequency, Rated Voltage 10kV
This switch performs the following functions
Closing/opening electrical circuits in the absence of load current or for transforming circuit connection schemes;
Creating a visible circuit break for safe operation on an isolated section;
Connecting and disconnecting charging currents of air and cable lines, no-load currents of transformers, and weak load currents.
Specification
Parameter Name | Value |
Model (Series) | RVZ |
Nominal Voltage, kV | 10 |
Number of Poles | 3 |
Nominal Current In, A | 630 |
Protection Degree | IP00 |
Maximum Operating Voltage, kV | 12 |
Rated Thermal Stability Current, kA | 20 |
Nominal Frequency, Hz | 50/60 |
Disconnector Weight | 26 kg |

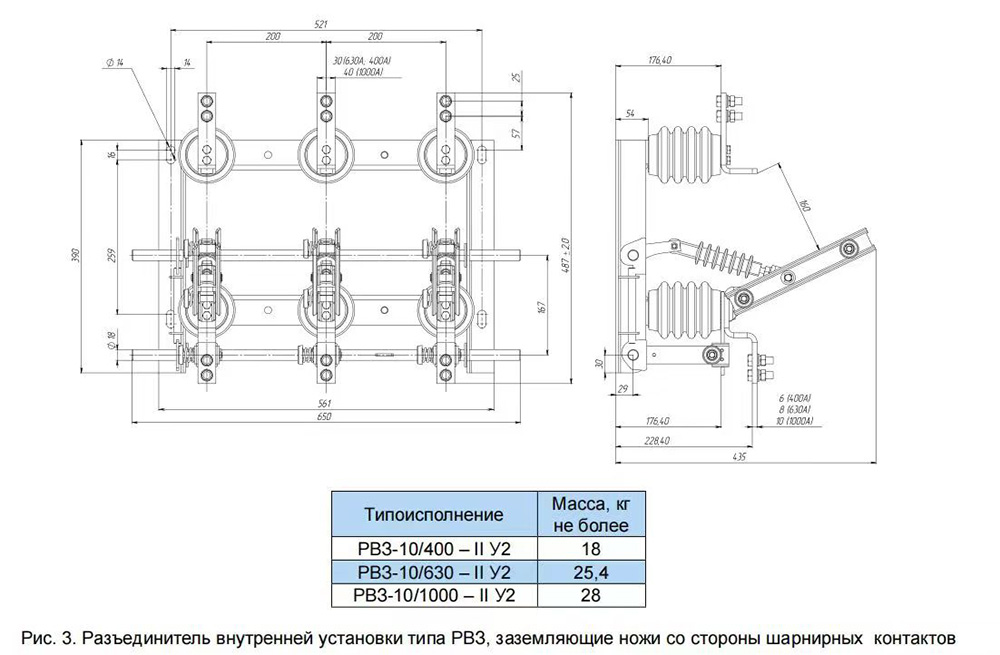

External Dimension (mm)
