Product overview

This product is mainly used in 100 kW-2,000 kW high-power industrial and commercial photovoltaic grid-connected power generation system, which is connected in series between grid-connected inverter (or AC junction box) and power grid. The product has a series of protections against islanding, such as voltage closing, voltage loss tripping, power grid low voltage, power grid overvoltage, input lightning protection, system overcurrent, power grid isolation, etc. The multi-function ammeter display and fault status indication make the system running status clear at a glance

Main feature

Reserve the installation position of metering meter and collector; Metering meters can have windows and lead seals (electricity theft prevention); The integrated design concept of products,

The power distribution part is completely isolated from the metering part, which reduces electromagnetic interference. The photovoltaic special plastic case reclosing circuit breaker and universal frame circuit breaker (optional) have more reliable performance; It can be equipped with on-line power quality monitoring, island protection device, fault disconnection device, etc. Outdoor and indoor installation is optional, making installation more convenient. Support special requirements and function customization.

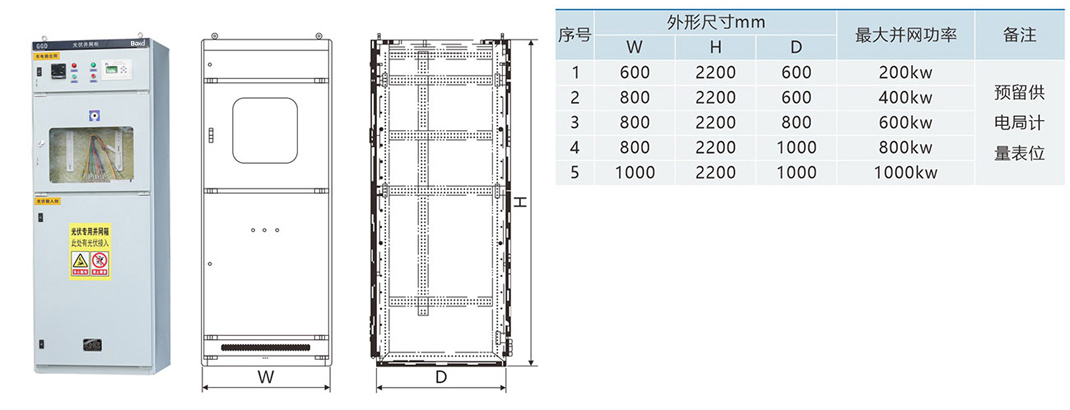

Technical parameter
