Summary
The main structural components of PZ40 terminal combined electrical appliance include transparent cover, upper cover, mounting rail, conductive bar, grounding wire and electrical switch elements. Built-in electrical switches are all made of electrical appliances with a width of 9mm, which are installed on the top hat-shaped track, and can be assembled at will as required, with quick and convenient disassembly and assembly. The handle of the switch element is exposed, and the charged and other parts are covered inside the upper cover, so it is convenient to operate when the door is opened, and it is safe and reliable to use. Inlet and outlet holes are arranged at the top and bottom of the box to facilitate wiring. The installation method is wall installation and embedded installation.
Product category
Type | Box size (mm) Height× Width× Depth | Case Pack (only/box) |
PZ40-1 | 270X420X140 | 15 |
PZ40-2 | 350X420X140 | 10 |
PZ40-3 | 470X420X140 | 5 |
PZ40-4 | 650X420X140 | 5 |
PZ40-6 | 470X700X140 | 2 |
PZ40-8 | 650X700X140 | 2 |
PZ40-10 | 800X700X140 | 1 |
PZ40-12 | 950X700X140 | 1 |
PZ40 three-phase | 280X600X180 | 5 |

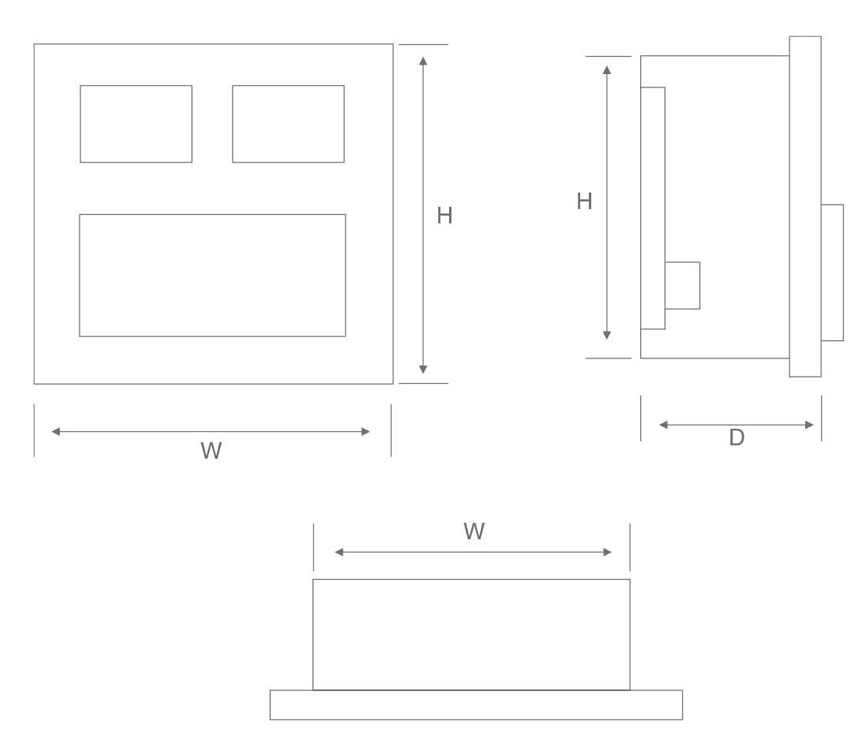

Outline dimension
