Summary

PZ30 modular terminal combination electrical appliance is a device for installing terminal electrical appliances with a module of 9mm. It is suitable for the power distribution of houses, stations, commercial networks and industrial and mining enterprises with AC 50HZ and rated voltages of 220V and 380V. It is a complete set of devices for controlling electrical equipment and over-protecting overload, short circuit, overvoltage and leakage. PZ30X modular terminal combination electrical appliances can be divided into two types: clearly installed and concealed installed.

Technical characteristics

Flame-retardant plastic door, which can open 90 degrees upwards.

Rated working voltage: 220/380VAC

Short-term withstand current: 4 kA

Rated working current: 10-400A.

Material

The panel is made of cold-rolled steel plate, and the surface is treated by electrostatic spraying technology. The plastic door is sturdy and durable, made of transparent wood benzene, and the door frame is made of flame-retardant ABS material, which is self-extinguishing in case of fire.

Bottom box: it is made of cold-rolled steel plate, and its surface is treated by electrostatic plastic spraying or zinc plating, with good anti-corrosion effect.

Protection grade: IP34D- Operating surface IP20C

Installation and wiring: there are knock-out holes around the bottom box for easy access.

There is a space between the bottom box and the guide rail to meet the customer's bottom wiring requirements. The depth of the guide rail can be adjusted vertically for accurate installation.

Meet the standard: GB7251 /GB17466

Technical parameter

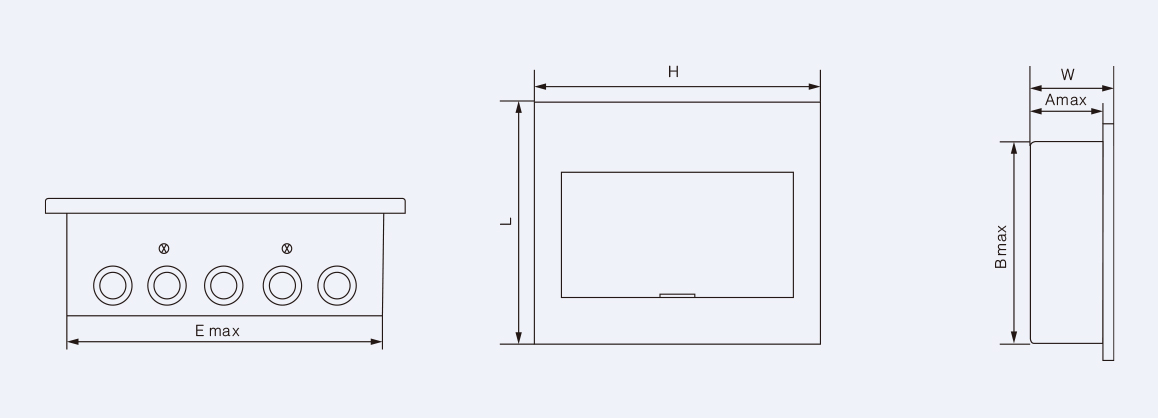

Outline dimension
